Integration with a Service Provider

On the Dengage platform, integrating with a service provider is a vital prerequisite for sending WhatsApp marketing messages. This integration is a crucial step to enable WhatsApp marketing campaigns.

• Navigate to Settings> Integrations > 3rd Party Integration
• Locate WhatsApp in the list and click the Connect button.

If the Connect button is not visible, it means that WhatsApp is not activated yet for your account , would you please contact your Account Manager or our Technical Support team to Activate WhatsApp integration for your account.

• Click on the "New WSP" button, then select your provider and click "Next" to proceed.

📘

Integration Process for WhatsApp Service Providers

Beyond this stage, the configuration steps will differ depending on your chosen WhatsApp Service Provider (WSP). Please refer to the relevant section below to complete your configuration.

Whatapp Business API Integration

Integrating your WhatsApp Business API into Dengage allows you to send WhatsApp messages directly, without relying on third-party platforms.

Prerequisite

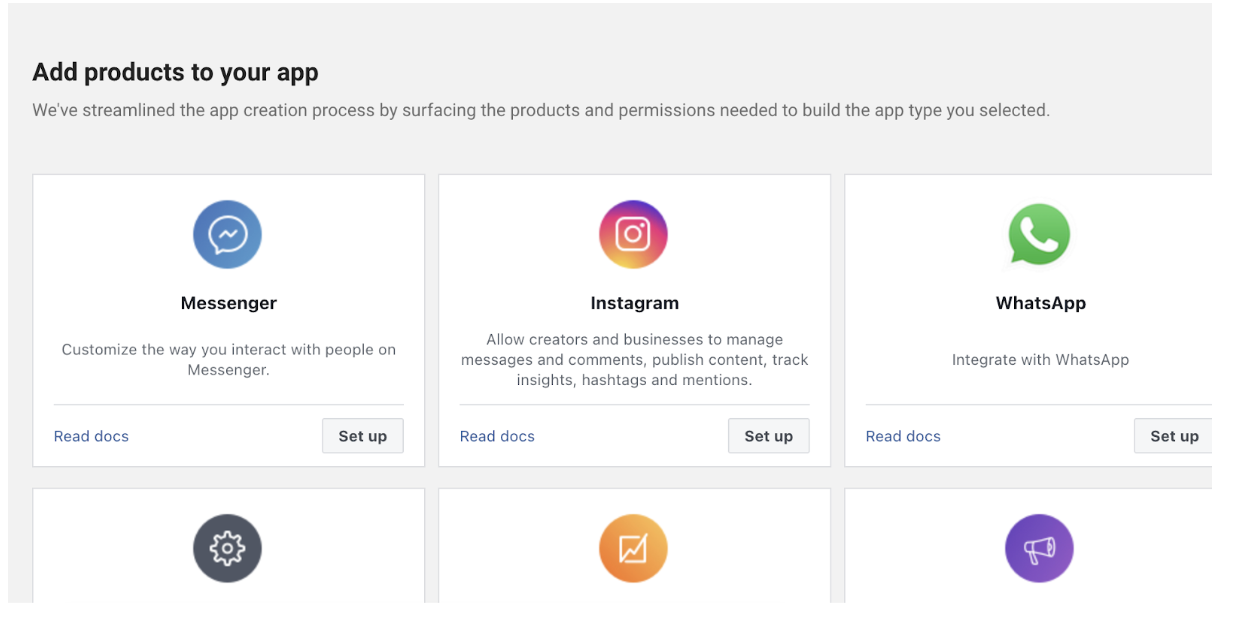

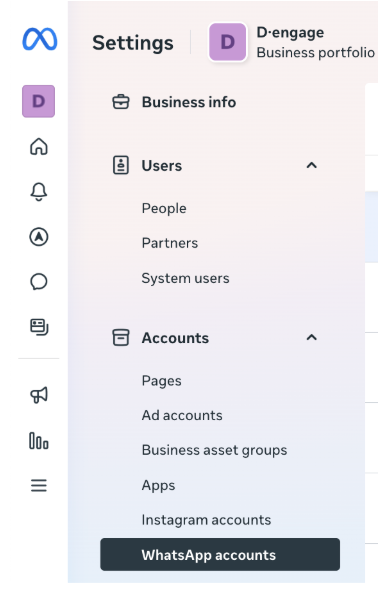

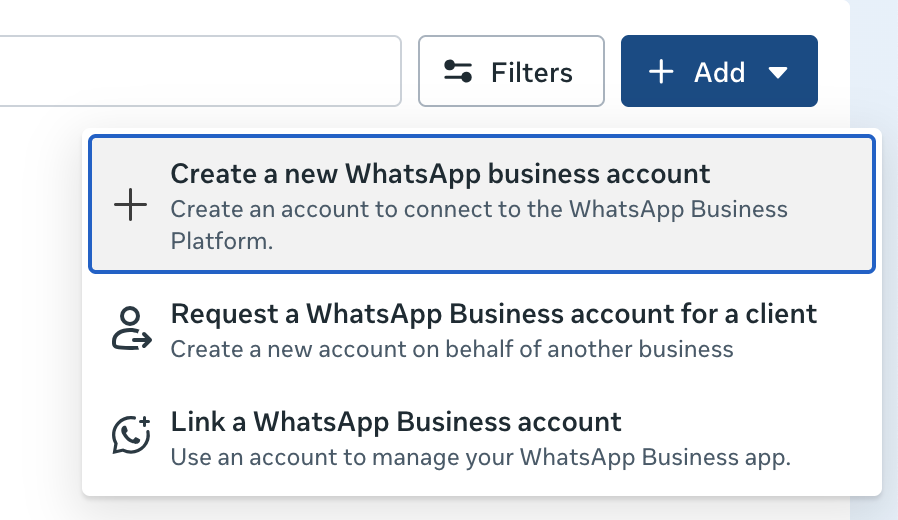

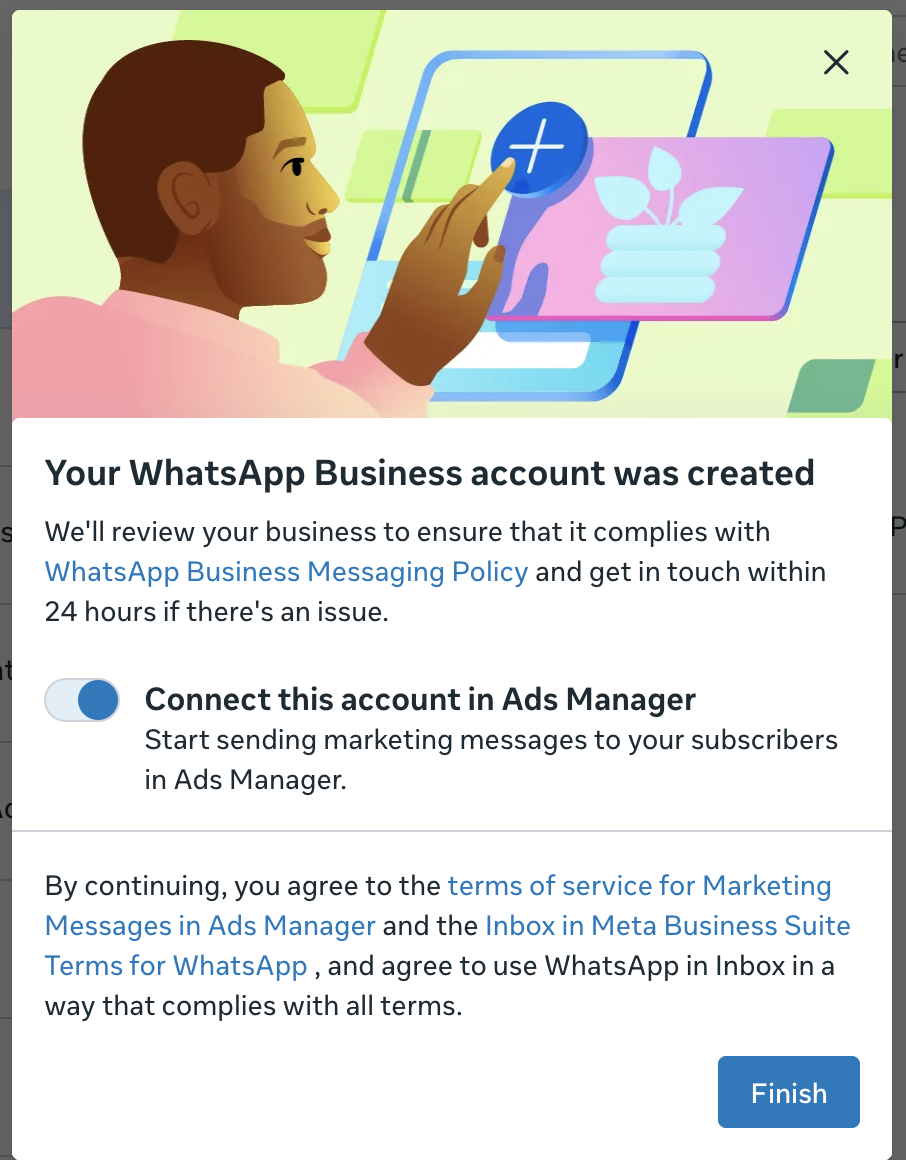

Before starting the integration process, make sure WhatsApp is added to your Meta Business Manager.

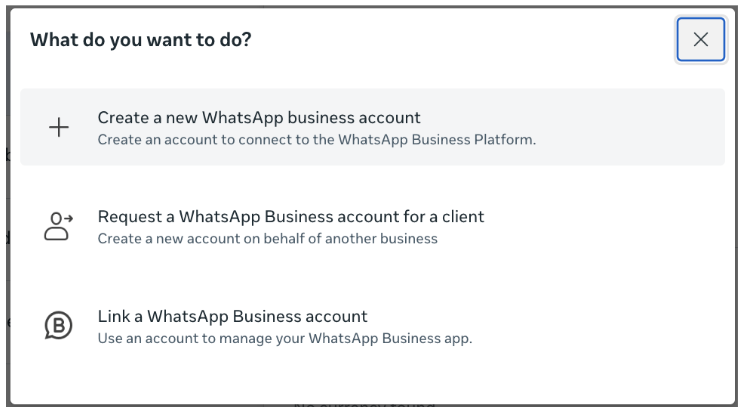

If you haven’t added it yet, go to your Meta Business Account and add WhatsApp to your account. This step is mandatory, as the integration cannot proceed without it.

How to Start the Integration

1. To begin, go to: Settings > Integrations > 3rd Party Integrations > WhatsApp

In this section, you'll see a list of available third-party integrations, including WhatsApp.
To proceed with integration details, click the Details button.

On the screen that opens, you’ll see the integration options for CM, Karix, and WhatsApp Business API.

Choose a Provider

• A modal (pop-up window) will appear with three provider options:
  • CM, Karix and WhatsApp Business API
• Select WhatsApp Business API, then click Next to continue.

Fill in Configuration Details

Configuration Name

Name your setup (e.g., “Main WhatsApp API”).

WhatsApp Information

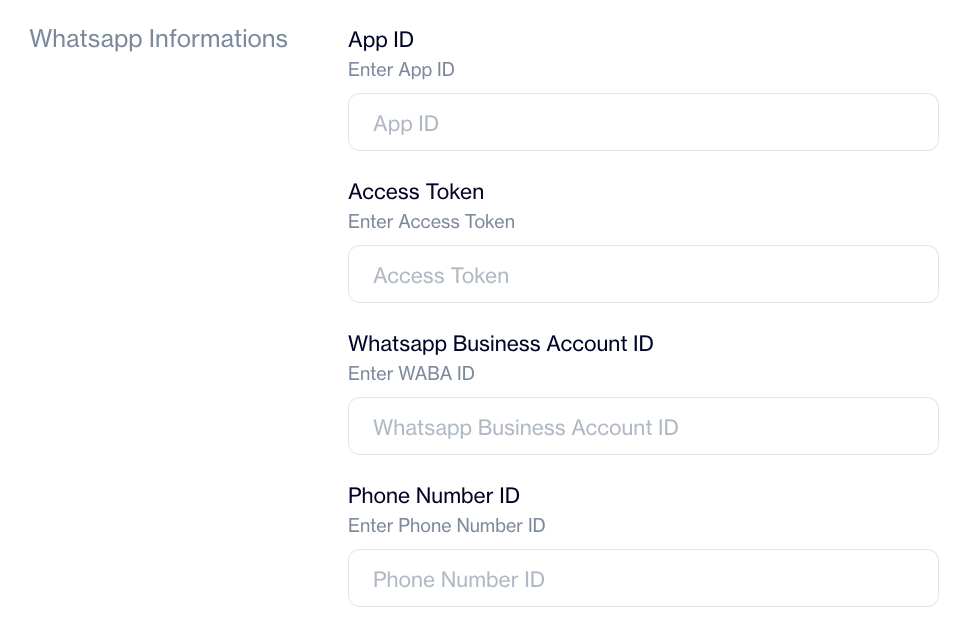

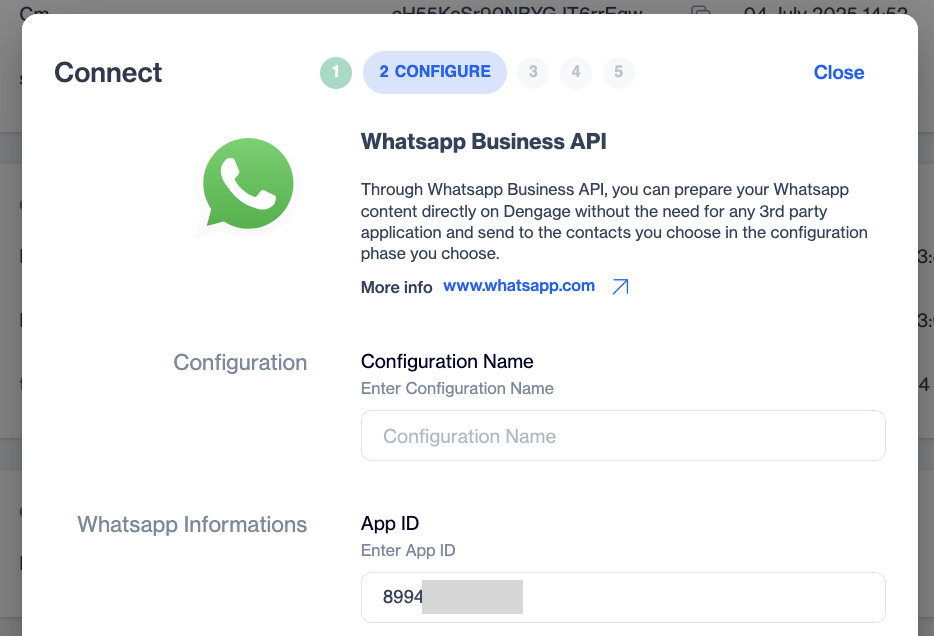

In the Configuration screen, enter the required WhatsApp credentials, which must be retrieved from your Meta Developers Account.

App ID

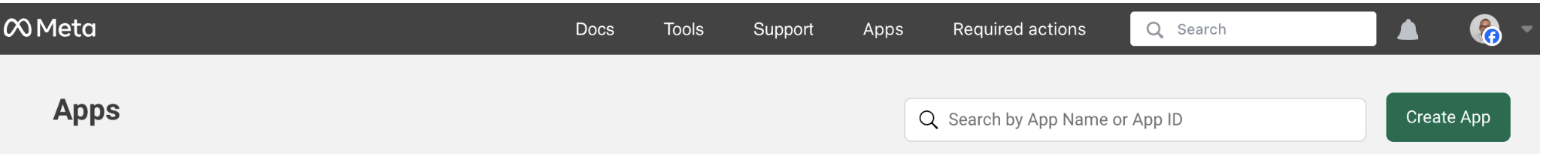

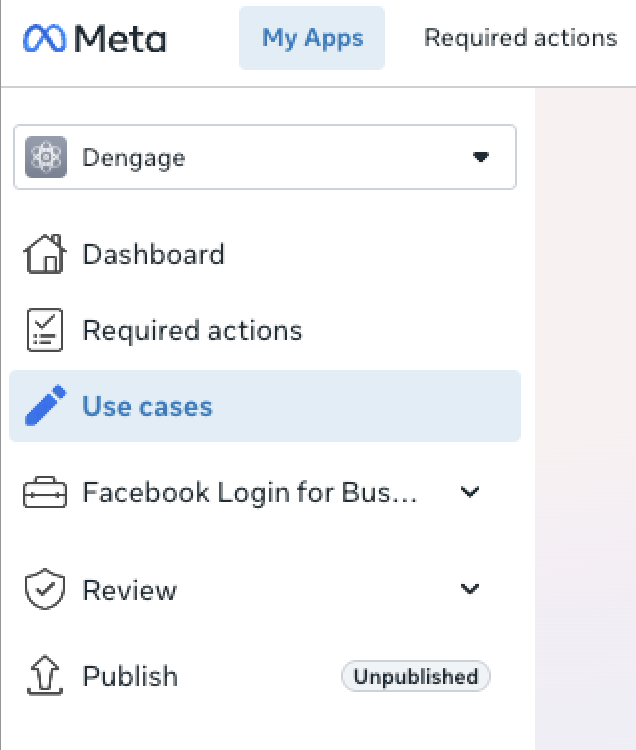

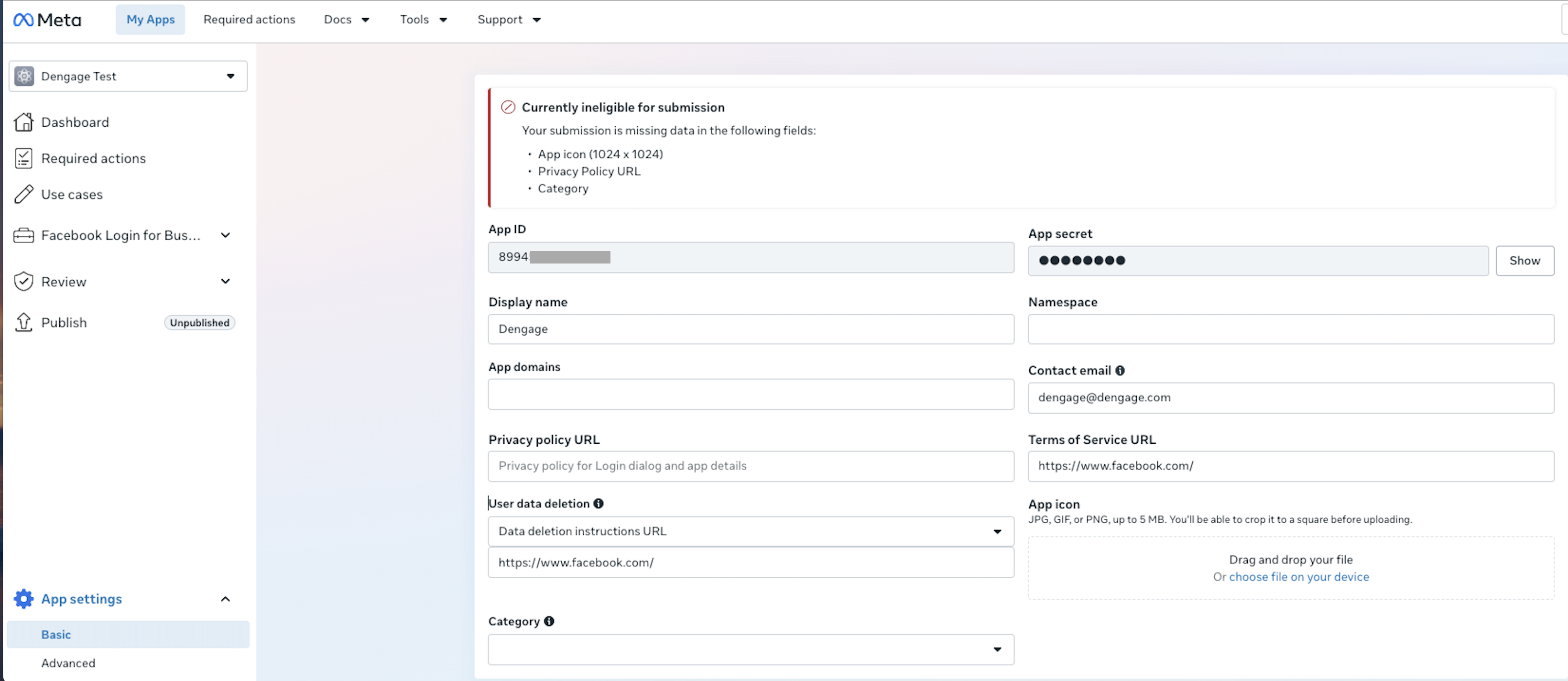

For the App ID field, log in to your Meta Developers Account, navigate to Meta > WhatsApp, and locate the App ID at the top-left corner of the screen. Copy this App ID and paste it into the "App ID" field on the Dengage configuration screen, then continue filling in the remaining required fields using the information provided in your Meta account.

Access Token

Important Note:

While you can generate an access token from your Developer Account under the API Setup section, this token is temporary and will expire after a short period. To generate a permanent access token, you must navigate to your Meta Business Account and follow the steps under the System Users section as described above.

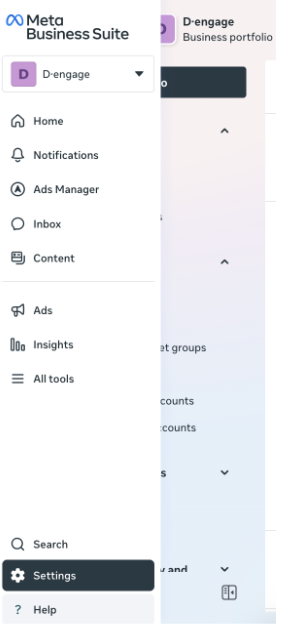

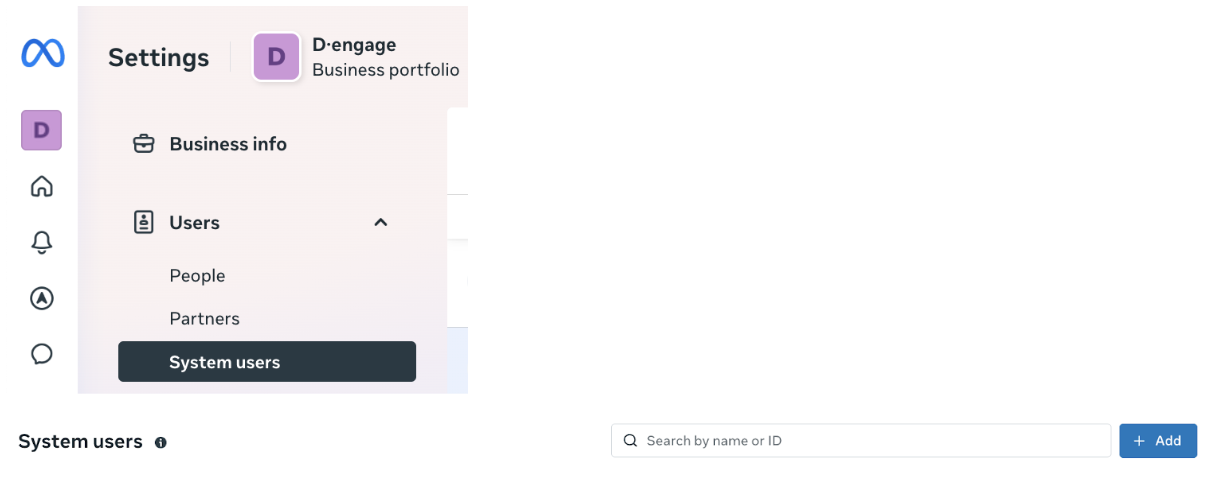

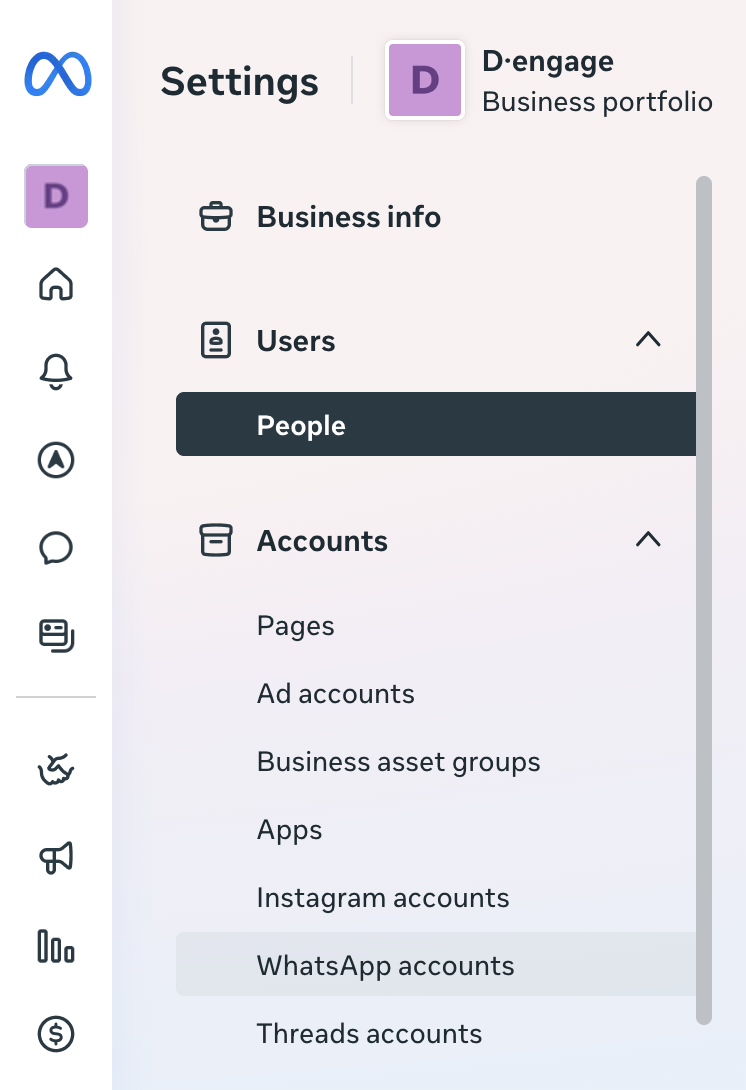

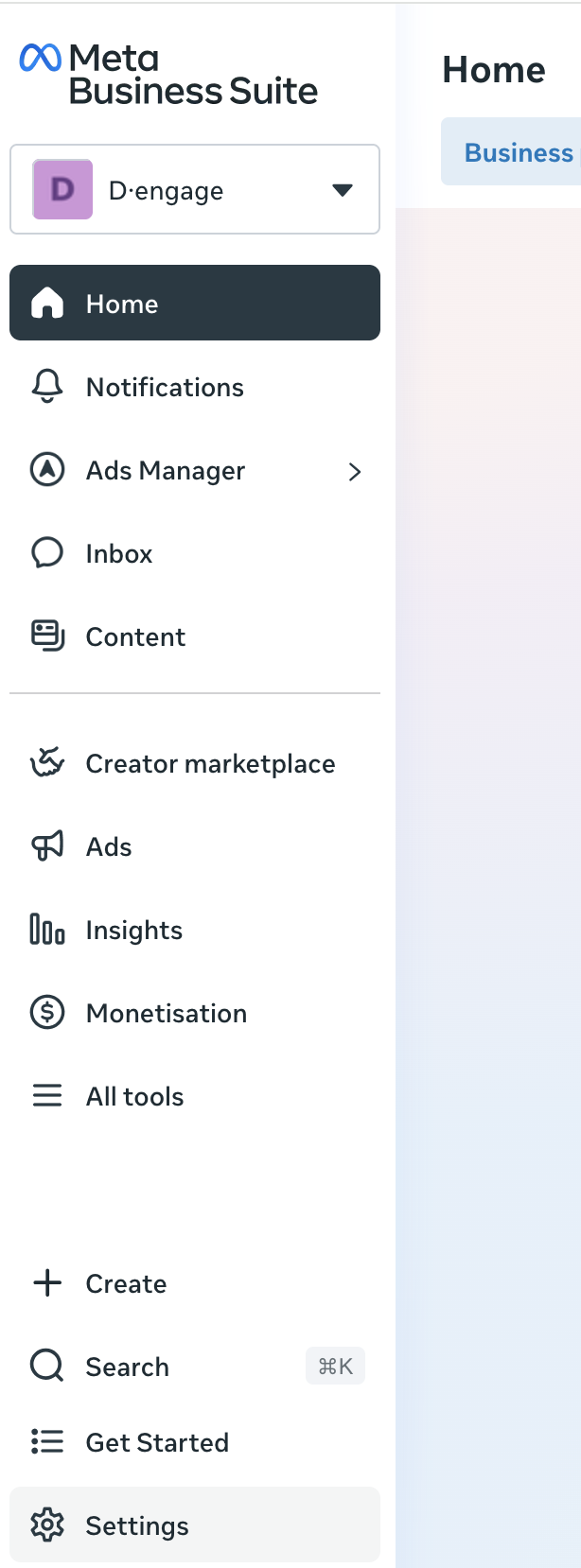

To create a permanent access token, go to Meta Business Account . To ensure the "Generate Token" option displays the necessary permissions, you first need to assign the System Admin role correctly within your Business Account. Go to Accounts > Apps and select the app you want to link. Then, click Assign People and choose the user who will act as the System Admin. After this assignment is completed, navigate to Users > System Users, select the system user you just assigned as admin, and click Generate Token.

A pop-up window will appear—start by selecting the app you want to use for the integration.

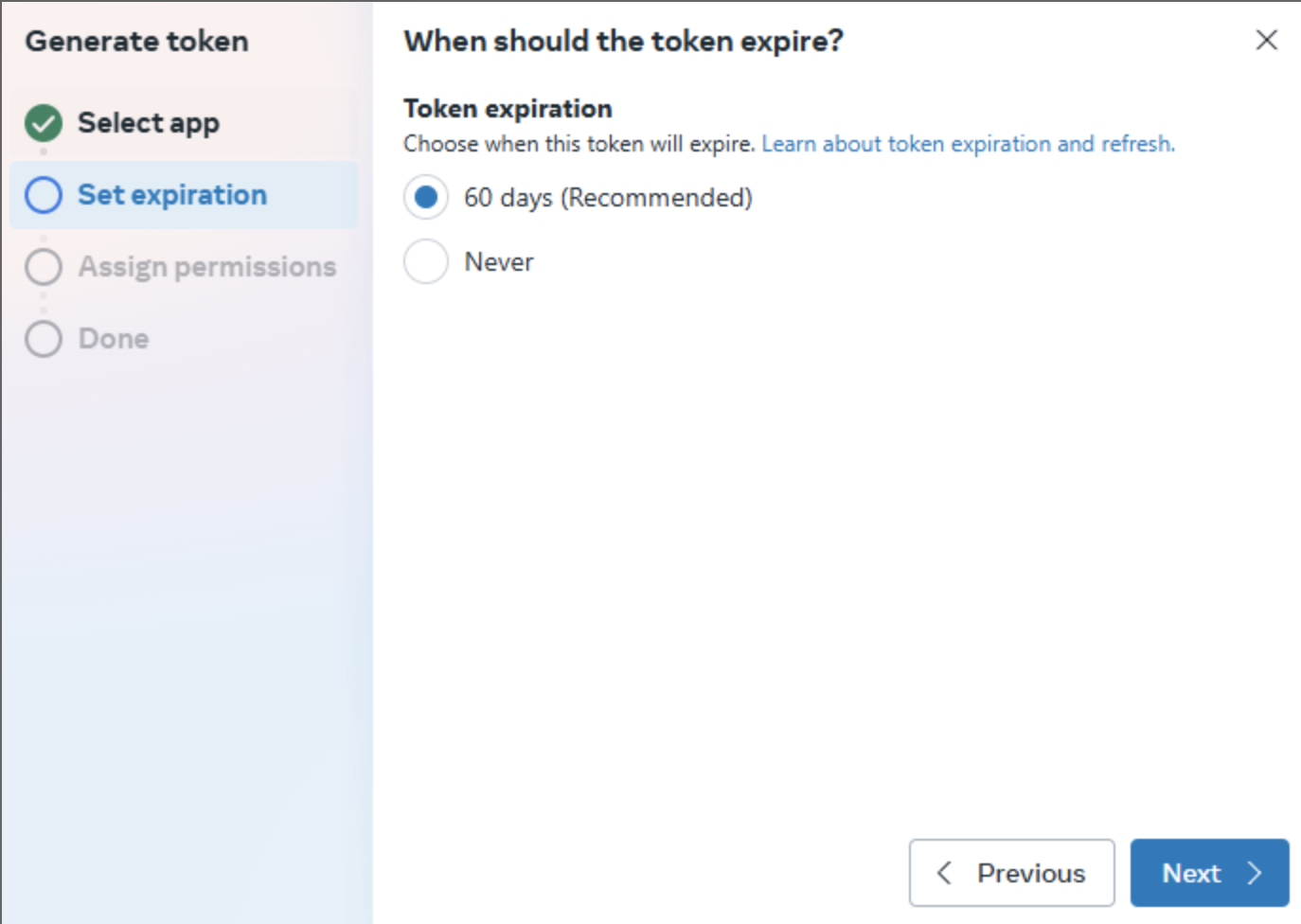

Next, you’ll be prompted to choose the token expiration period. You can select either 60 days or Never.

If you select 60 days, you must renew the token every 60 days—otherwise, your WhatsApp messages will not be sent. For this reason, it is recommended to choose Never to avoid interruptions.

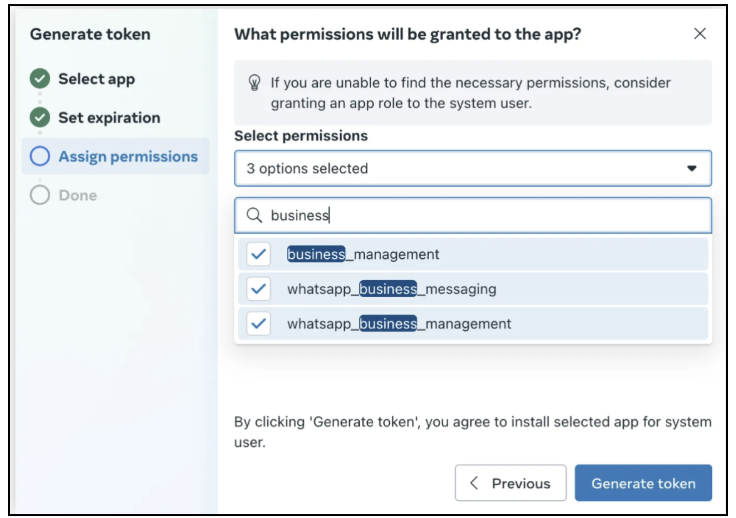

After assigning the necessary permissions—business_management (for sending messages), whatsapp_business_messaging (for creating templates), and whatsapp_business_management (for capturing events), click the Generate Token button.

Once the token is generated, it will be displayed on the screen. Copy the token immediately and paste it into the Access Token field on the Dengage WhatsApp Integration screen.

*Important: The token is shown only once. After you copy it, it disappears from the interface. If you forget to copy it or navigate away from the screen, you will not be able to retrieve it again and must generate a new one.

WABA ID (WhatsApp Business Account ID) and Phone Number ID

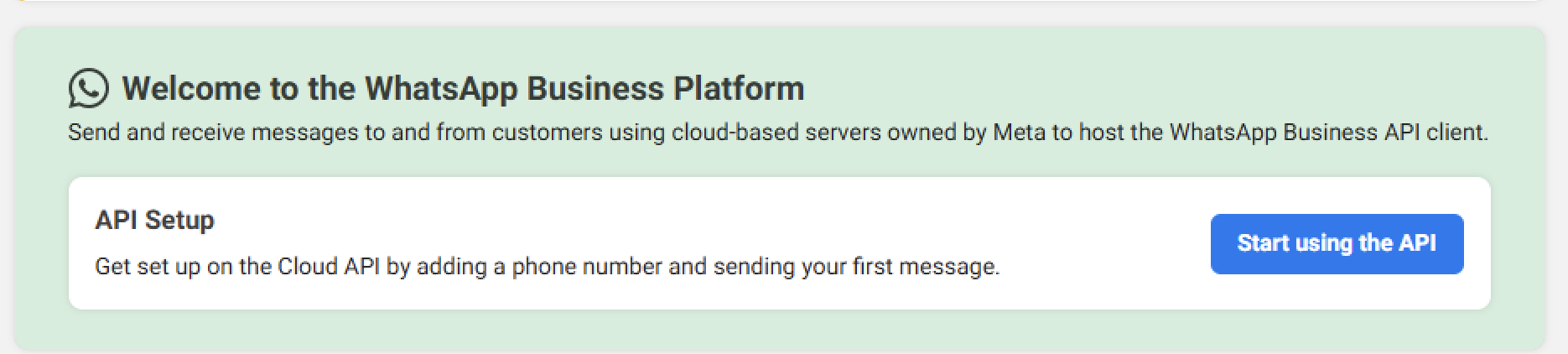

Go to your Meta account > WhatsApp > Quickstart screen, complete the quickstart process, and click the "Start using API" button to open the API Setup page.

Quickstart

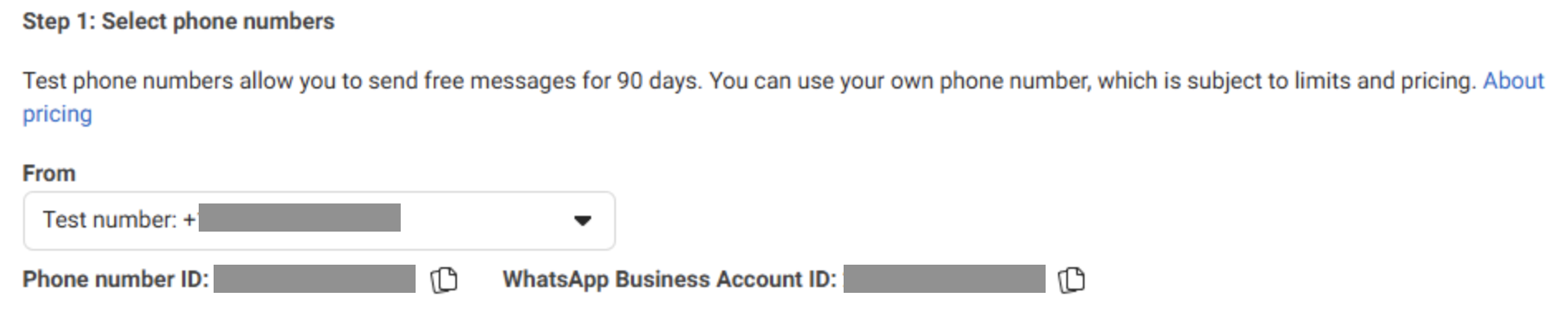

On the API Setup screen, scroll to the Send and receive messages section. Select your test number, and you’ll see both the WABA ID (WhatsApp Business Account ID) and the Phone Number ID displayed. Copy these values and paste them into the corresponding fields on the Dengage WhatsApp integration screen.

Webhook Configuration

After filling out the WhatsApp Information section on the Dengage Integration screen, click the Add Account button. This will reveal the Webhook Configuration section.

The WhatsApp Information section contains details required for creating content and sending messages, while the Webhook Configuration section is used for tracking incoming messages, such as delivery status.

Once the Webhook Configuration appears, the Callback URL and Verify Token fields will be automatically filled in.

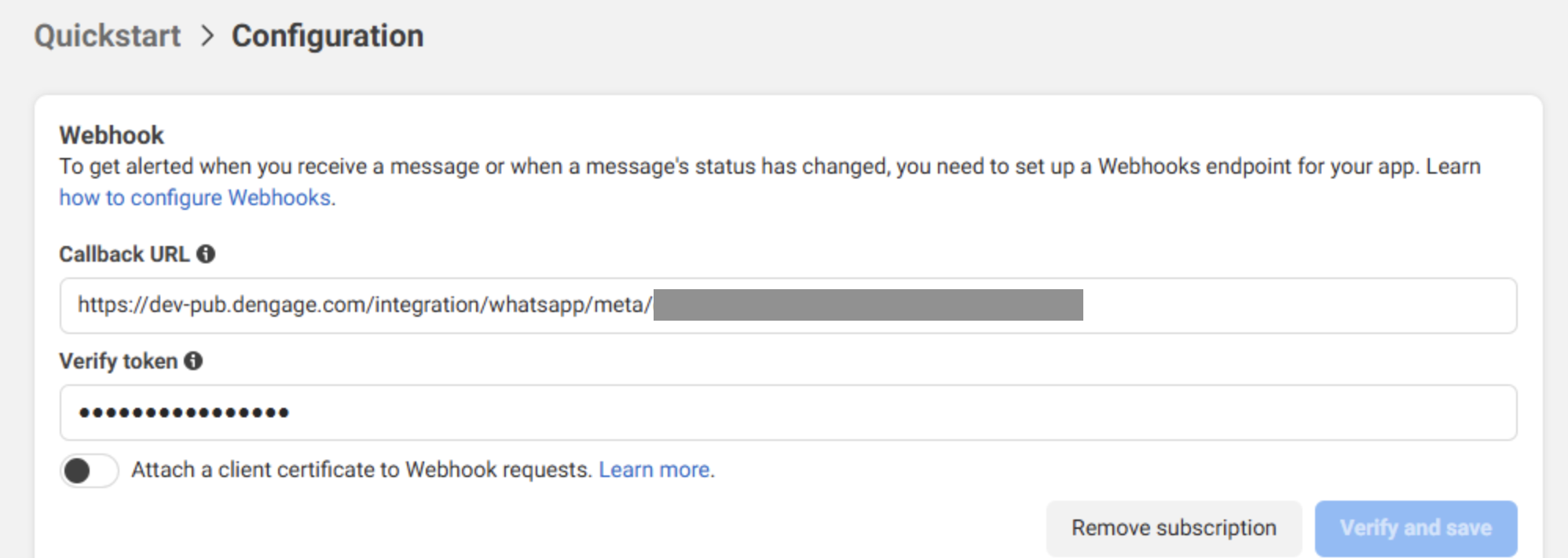

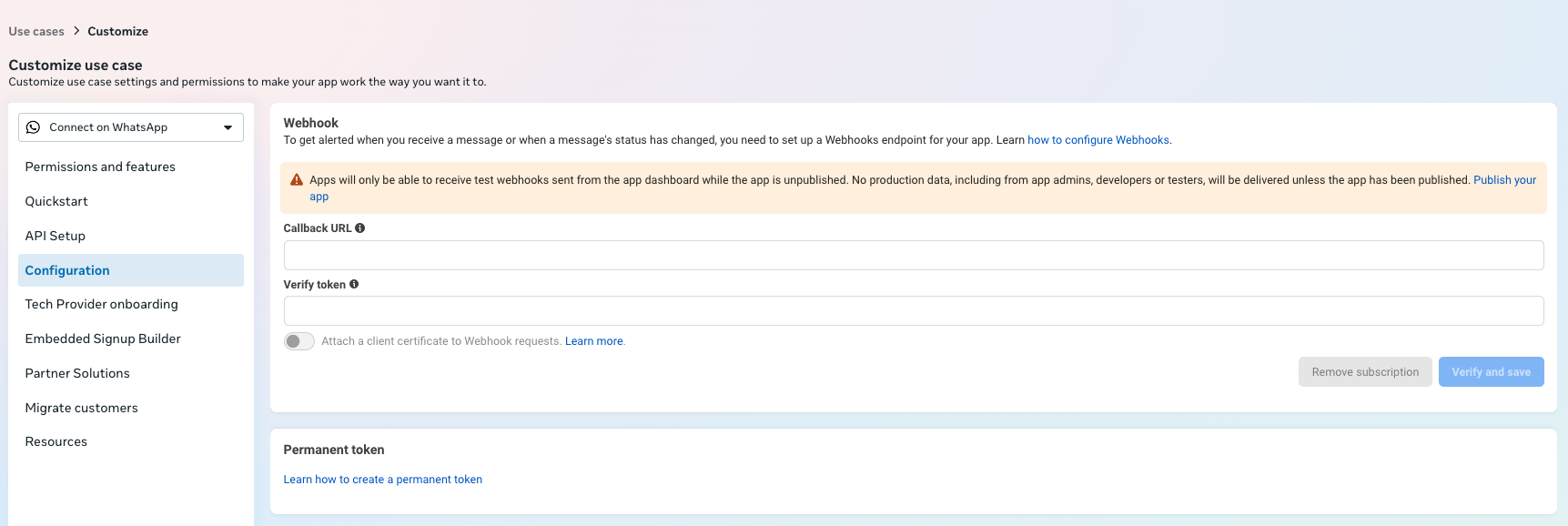

Copy these values on Dengage Configuration Screen, then go to your Meta Developers Account > WhatsApp > Configuration section. Paste the Callback URL and Verify Token into the corresponding fields, and click Verify and Save.

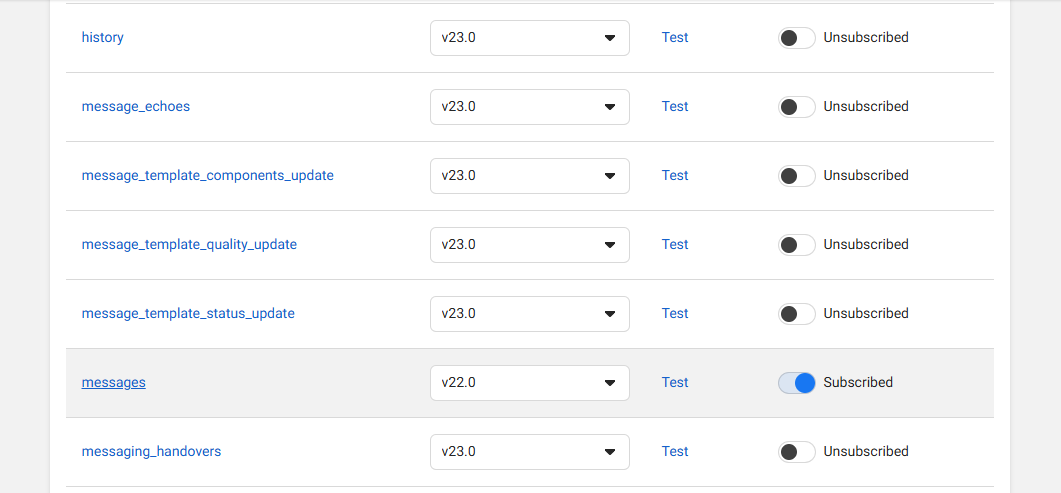

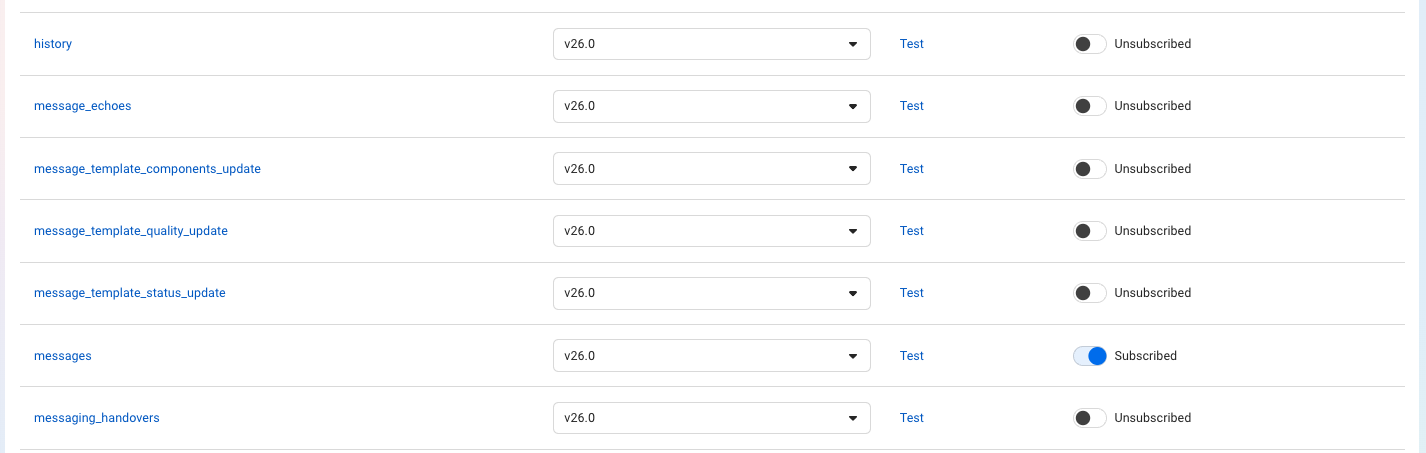

If everything is set up correctly, a list of Webhook Fields will appear. From this list, make sure to activate the “messages” subscribe toggle only. Do not subscribe to any other fields in the list. This completes the WhatsApp integration process.

Important: All current enhancements are built for WhatsApp API version 22.0. Make sure your Meta application is also set to use version 22.0 to ensure full compatibility.

• You can enter multiple accounts, but only one account per modal.

Adding an Additional WhatsApp Phone Number

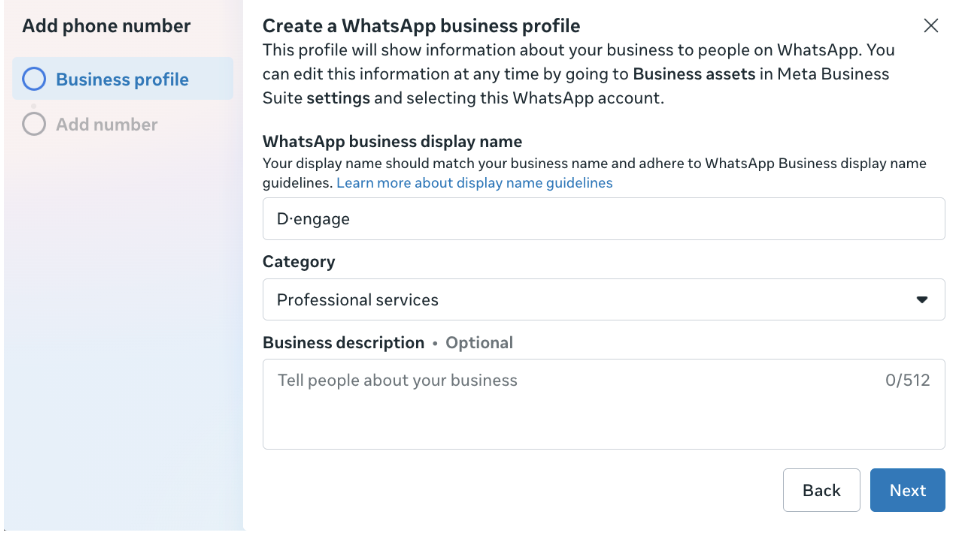

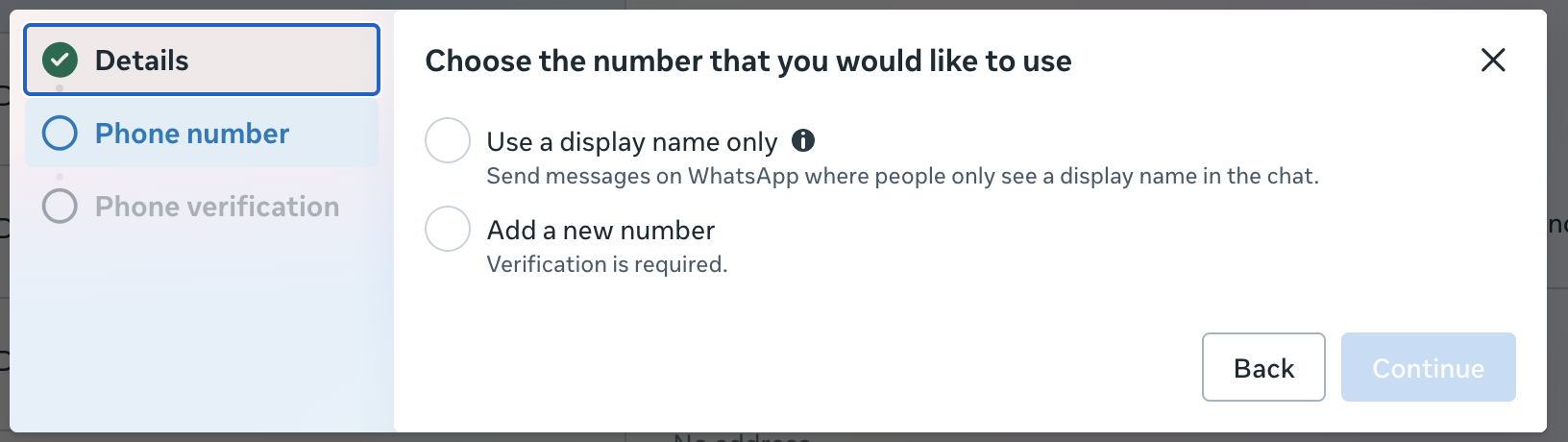

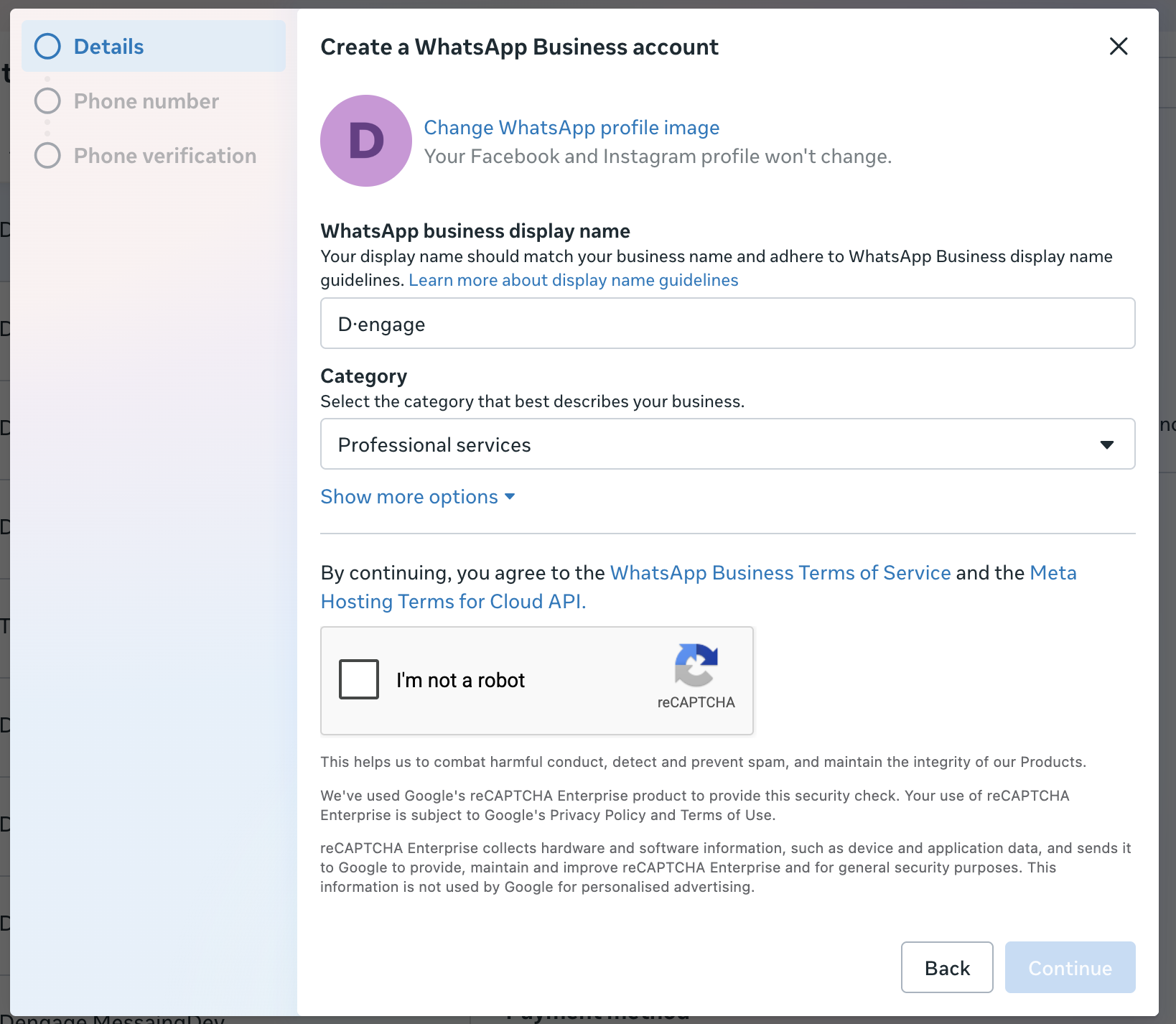

If the user wants to use more than one WhatsApp number, they should navigate to Developers Account > WhatsApp > API Setup > Step 1: Select Phone Numbers. In this section, click the "Add Phone Number" button from the dropdown menu. In the modal that appears, fill in the required fields under the WhatsApp Business Profile section, such as the WhatsApp Business Display Name. Then proceed to the "Add Number" section to input the new phone number. In the final step, Verify Number, complete the number verification process.

Important Note:
The number being added must not be associated with any existing WhatsApp account (personal or business).

Adding a Second Phone Number Under the Same Application in the Platform

When a new phone number is selected from the From dropdown in the API Setup, both the Phone Number ID and the WhatsApp Business Account ID (WABA ID) will change based on the selected number.

If you want to add an additional number to the same application via the Dengage platform, follow these steps:

1. Go to Integration > 3rd Party Integration > WhatsApp.
2. Click the "New WSP" button to add a new WhatsApp sender profile.
3. Under the WhatsApp Information section:
   • Enter a Configuration Name for the new setup.
   • App ID and Access Token will remain the same. You can copy these from the existing configuration and paste them here.
   • Update the Phone Number ID and the WhatsApp Business Account ID (WABA ID) fields using the values associated with the new phone number from Meta Developers Account.
4. After filling in the required fields, click the Add Account button to complete the process.

Important Note:

If the newly created application is linked to an existing WhatsApp Business account, all phone numbers connected to that account will automatically appear in the From dropdown under the API Setup section in the Meta Developer Console.

As a result, all content associated with the existing phone number(s) will be visible in the Dengage WhatsApp Content section. This is because content visibility is determined by the Phone Number.

However, when a new phone number is added and linked through the same application using the method described above, only content tied to that specific number will be visible. In this setup, it behaves as if a different partner is using the system, keeping content visibility limited to that number.

Integration with Karix

• From the list of providers, select Karix.

A configuration form will appear. Please follow the step-by-step guide below to fill in the necessary fields.

Obtaining WABA Id

• Login to your Karix Panel
• Navigate to WhatsApp Campaign

• Select the WABA Status

• From the data grid, Copy The WABA ID .

• In the WSP form, paste the WABA ID into the designated section.

Obtaining Product Token[API KEYS]

• Access the Karix Lounge
• Under the Power API section, click on the API KEYS button.

• Reveal the API Key by clicking the Eye icon and copy it.

• Paste the copied ID into the Product Token [APIKEYS] section on the WSP form.

• Enter your WhatsApp Business Profile number as Sender Name in the provided field.

• To finalize the configuration, click the Add Account button.

📘

Important Information on Message Tracking & Reporting

• For seamless integration of data from the Karix platform into D·Engage Send Reports, please initiate a request with our Technical Support Team. This step is crucial to ensure accurate and complete data transfer.
• Additionally, comprehensive reports are readily available directly from the Karix panel, providing an alternative source for detailed insights.

Integration Complete

Your Dengage and Karix accounts are now connected. You're all set to send WhatsApp Marketing Messages through the registered WhatsApp Business Profile on Karix and receive detailed reports on your campaigns.

Integration with CM.com

• Provide a name for your configuration. This name will be used for selection when sending a campaign and can be any name of your choice.

• Complete all the required information in the following sections.

📘

Sender Name is your WhatsApp Business Profile Number

To complete the integration, the "Sender Name" field should be filled with your WhatsApp Business Profile Number. If you intend to add more than one Business Profile, click on the "Add Sender Name" button.

Integration Complete

Your Dengage and CM.com accounts are now connected. You're all set to send WhatsApp Marketing Messages through the registered WhatsApp Business Profile on CM.com and receive detailed reports on your campaigns.
